3A Composites Architecture Systems

Over 50 years of experience give us the confidence to offer you not just a product, but complete system solutions for façade design.

Systems 3A Composites GmbH

Even after decades of outdoor use, ALUCOBOND® preserves the value of a property's exterior - avoiding the higher maintenance costs common with many alternative solutions. If you take the low maintenance costs, energy efficiency and investment costs into consideration, the result is a convincingly beneficial calculation for both smaller properties and large-scale projects.

Please find below, information about rear-ventilated cladding systems and the most common design drawings for standard façade versions. You can also contact us at any time if you have individual application-related queries. Our team of experienced technical experts will be happy to offer support with your project objectives.

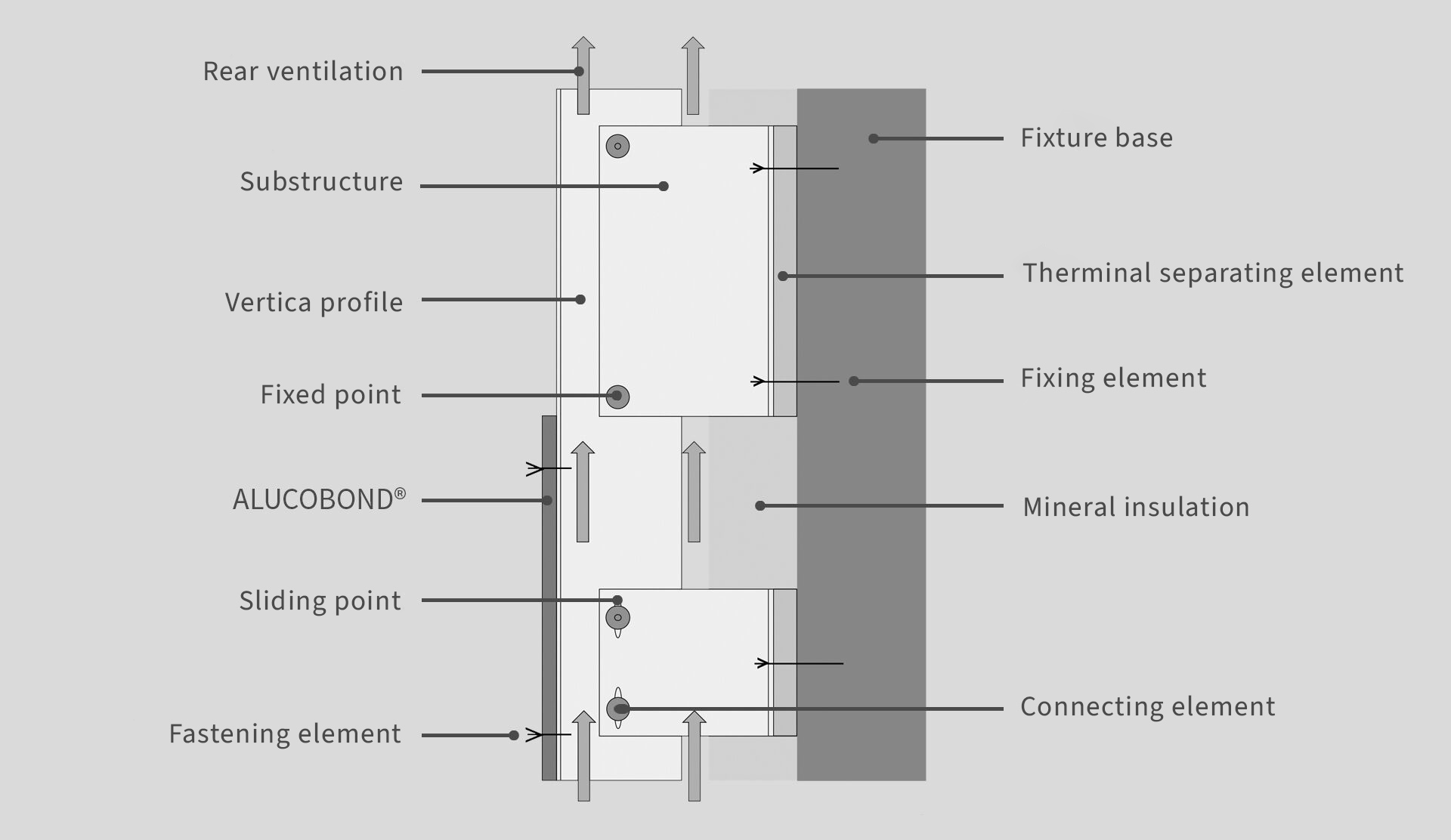

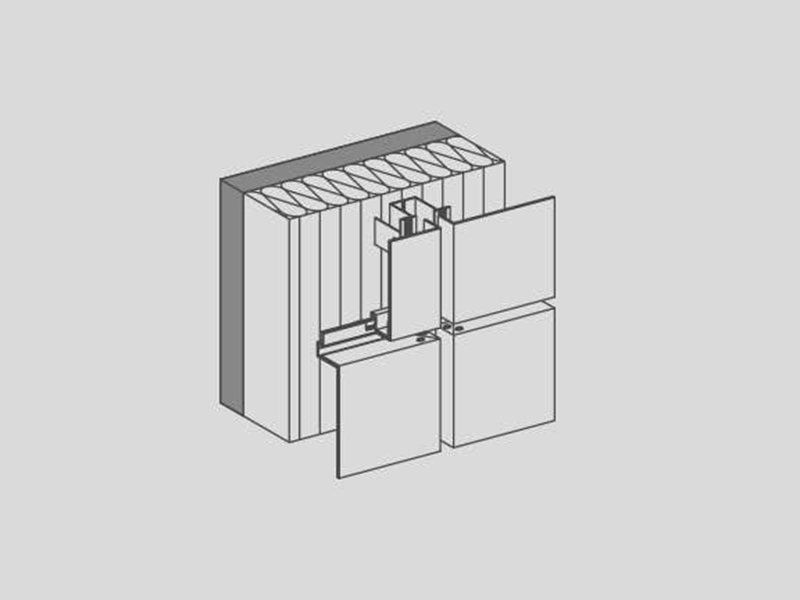

Rear-ventilated façade

Rear-ventilated façades are one of the most successful façade systems today. In addition to functional safety, architects particularly appreciate the design options offered by a rear-ventilated façade. In this way, the design of the façade can be individually tailored to the characteristics of a building.

The FVHF sees a particular focus on emphasising the technical qualities of the rear-ventilated façade system. These lie primarily in the structural separation of the thermal insulation and weather protection functions. The susceptibility to damage is therefore lower than with other façade systems. In addition, special requirements for fire safety, sound insulation or lightning protection, for example, can be implemented easily and in an appealing design.

Systems 3A Composites GmbH

Design and structural benefits

  • Extremely low weight of ALUCOBOND® panels combined with high flexural rigidity
  • Easy tolerance compensation
  • Simple and safe variation of the insulation thickness
  • Easy to achieve energy-related building standards
  • Effective protection against rain and condensation
  • Protection against vandalism (graffiti, mechanical wear and tear)

Energy efficiency

  • Protection against overheating in building interiors in summer; protection against cooling down and heat loss in winter
  • Pleasant indoor climate, comfort
  • Very favourable vapour diffusion behaviour (no condensation)

Sustainability/
Cost-effectiveness

  • Low susceptibility to damage of VHF systems
  • Long service life of the façade
  • Low lifetime costs due to very low maintenance and upkeep costs
  • Easy to dismantle
  • Reusability and option to return to the material cycle

Aesthetics

  • Combination of materials, surfaces, colours, shapes, joint types
  • Great variety of colours and surfaces
  • Impact on a building's architectural character by means of
  • visible or concealed fastening for the cladding
  • 3D façade structuring

ALUCOBOND® fastening systems

ALUCOBOND® systems

Systems 3A Composites GmbH
tray panel suspended
on stainless steel bolts for vertical façade layout
Systems 3A Composites GmbH
Screwed tray panel
for vertical façade layout
Systems 3A Composites GmbH
Tray panel SZ20
Tongue and groove principle for horizontal façade layout
Systems 3A Composites GmbH
Bonded
for vertical / horizontal façade layout
Systems 3A Composites GmbH
Riveted / screwed
on vertical profiles for vertical façade layout
Systems 3A Composites GmbH
Riveted
on omega profiles for vertical installation
Systems 3A Composites GmbH
Clamped / screwed
on double top hat profiles
Systems 3A Composites GmbH
Riveted weatherboard effect/
on aluminium substructure
Systems 3A Composites GmbH
easy fiX 90°/135°
for vertical / horizontal façade layout
Systems 3A Composites GmbH
easy fiX 135° /135°
for vertical / horizontal façade layout
Systems 3A Composites GmbH
easy fiX 90°/90°
for vertical/horizontal façade layout
Systems 3A Composites GmbH
Isolink® renovation façade
e.g. easy fix 135°/135° and other similar systems

To avoid differences in reflection (for metallic, anodized look, naturAL, Spectra and Sparkling colours), it is essential to install all composite panels pointing in the same direction as the arrows marked on the protective peel-off foil. Panels from different production Batches may vary sightly in colour. To ensure colour consistency, we strongly recommend ordering the total material requirement for a project in one order.

ALUCORE® fastening systems

ALUCORE® systems

Systems 3A Composites GmbH
Façade clamped
Systems 3A Composites GmbH
Façade suspended
on stainless steel bolts for vertical façade layout
Systems 3A Composites GmbH
Façade suspended
Systems 3A Composites GmbH
ALUCORE® XXL

To avoid differences in reflection (for metallic, anodized look, naturAL, Spectra and Sparkling colours), it is essential to install all composite panels pointing in the same direction as the arrows marked on the protective peel-off foil. Panels from different production Batches may vary sightly in colour. To ensure colour consistency, we strongly recommend ordering the total material requirement for a project in one order.

For more information, please go to Technical extras or contact your local ALUCOBOND® representative.
