ALUCOBOND® A2
Our non-combustible aluminium composite panel.

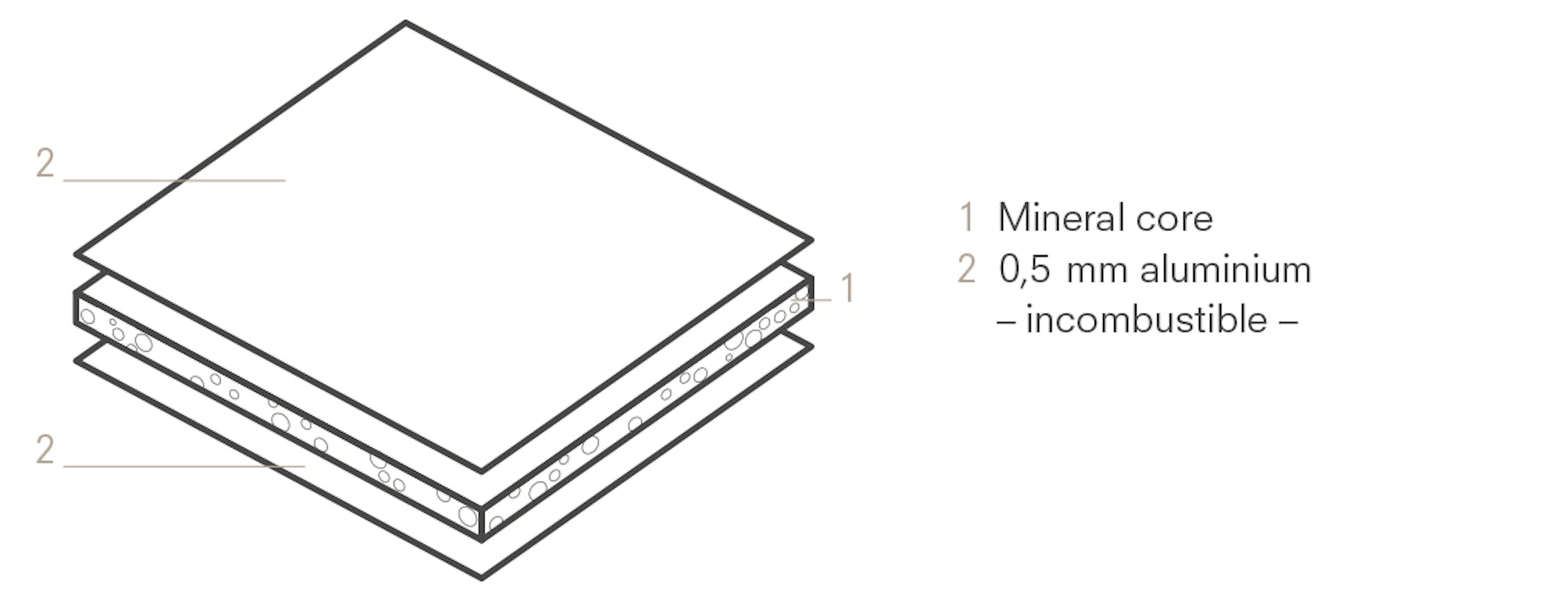

ALUCOBOND® A2 is our non-combustible aluminium composite panel for façades which meets all relevant standards worldwide. ALUCOBOND® A2 fulfils very exacting requirements of the fire safety regulations thanks to the mineral-filled core, and increases the scope for building concepts and design. Like all products in the ALUCOBOND® family, ALUCOBOND® A2 is easy to process, break-proof, impact-resistant, weather-resistant and, most notably, non-combustible.
Product properties
ALUCOBOND® A2 in comparison with solid aluminium sheets
Required thickness and corresponding weights with the same bending stiffness
ALUCOBOND® circular
ALUCOBOND® A2 circular is manufactured with 89% recycled aluminum. Using the mass balance approach, we have significantly increased the recycled content without compromising quality or processability.
Benefits:
Reduction of CO2 emissions: The CO2 emissions of the cover sheets have been reduced by 52% compared to conventional processes.
Circular economy: Production waste is recycled, the aluminum is remelted, and used for new panels.
Short transport distances: With transport distances of less than 15 kilometers between the recycling facility and the manufacturer, we further minimize our ecological footprint.
Environmentally friendly and efficient: The use of secondary aluminum saves fossil resources and reduces greenhouse gas emissions, without requiring adjustments to existing processing equipment.
Diversity in design: see delivery program
Product range
ALUCOBOND® A2
Thickness: 3/4mm
* Exception: ALUCOBOND® naturAL Pure is only available in ALUCOBOND® A2 in a width of 1250 mm.
Dimensional tolerances (standard)
Due to manufacturing processes, a lateral misalignment of the cover sheets (up to 2 mm) may occur at the panel edges .
Thickness: ± 0.2 mm ( mill finish | stove-enamelled | anodized )
Width: - 0 / + 4 mm
Lengths: 2000 - 4000 mm; - 0 / + 6 mm
Lengths: 4001 - 6800 mm; - 0 / + 10 mm
Colours and finishes
Other colours and finishes are available on request. These are subject to our minimum quantities.
Technical data
Wind loads and panel dimensions
In Germany, the dimensioning of ALUCOBOND® façade systems is regulated by the general building approval (abZ) No. Z-10.3-774. In the Technical Extras section, you can find this and various design examples at Technical extras.
Fire rating
